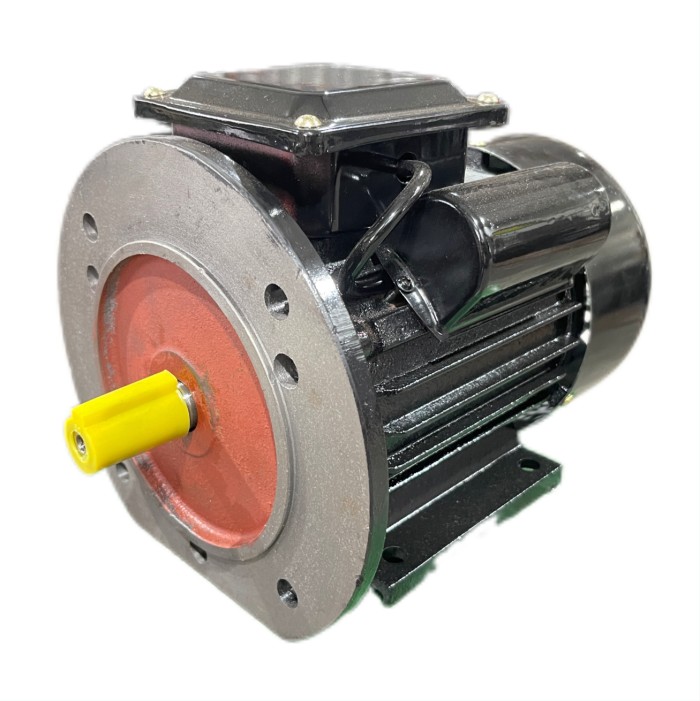

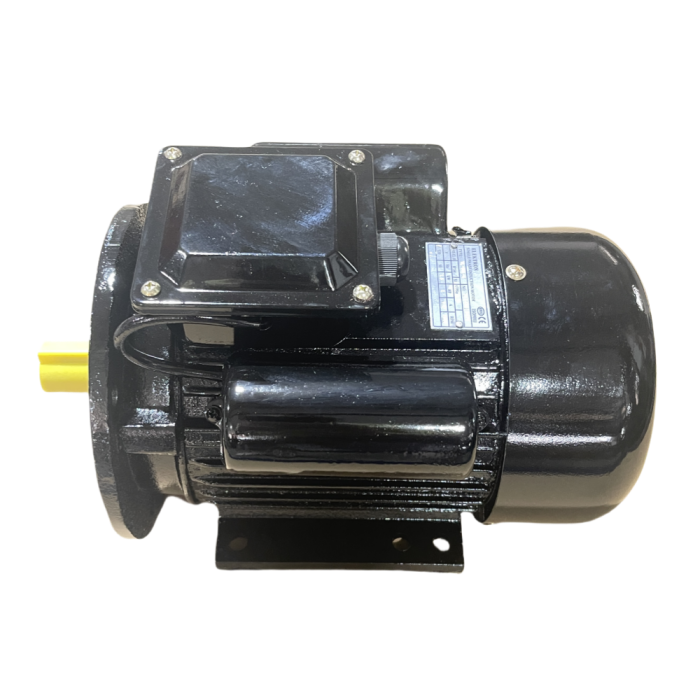

Single-Phase AC Motor YL-90S-2 B35

YL series

Single-Phase AC Motor YL-90S-2 B35

IE1 single-phase AC Induction Motor

Power:​​ 0.37kW-7.5kW ​
Voltage:​​ 220V Or be customized
Frequency: 50/60Hz ​
Protection:​​ IP55 (🛡 + ​ Dust Resistant) ​
Temp Range:​​ ❄ -15°C to 🔥 40°C ​
Insulation:​​ F/B (High-Temperature Design)
​Duty:​​ Continuous (S1)
​Cooling:​​ IC411 (Fan-Cooled Enclosure)
​Altitude:​​ ≤1000m

single-phase AC Induction Motor

Single-phase asynchronous motors are characterized by low noise, compact structure, light weight and easy maintenance. These motors are widely used in air compressors, water pumps, fans, refrigerators, medical equipment, small machinery and so on. They are especially suitable for the occasions where only single-phase power supply is available.
