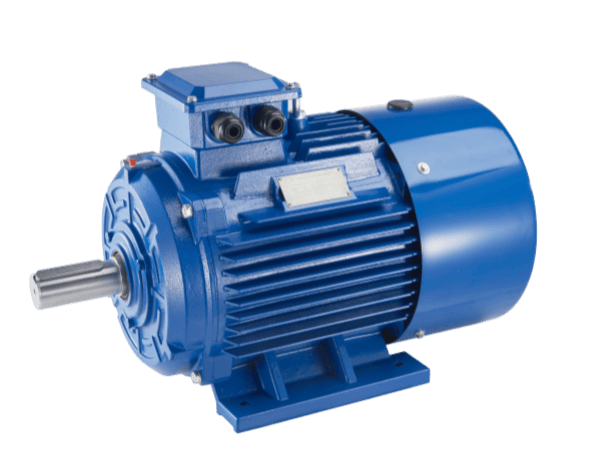

Y2 Series Three-phase AC Motorc B3

Y2 Series Three-phase AC Motorc B3
Y2/Y3

Y2 Series Three-phase AC Motorc B3

    Power:​​ 0.55kW-315kW ​
    Voltage:​​ 380V or any vlotage between 220-660V
    Frequency: 50/60Hz ​
    Protection:​​ IP55 (🛡 + ​ Dust Resistant) ​
    Temp Range:​​ ❄ -15°C to 🔥 40°C ​
    Insulation:​​ F/B (High-Temperature Design)
    ​Duty:​​ Continuous (S1)
    ​Cooling:​​ IC411 (Fan-Cooled Enclosure)
    ​Altitude:​​ ≤1000m
    Connection：3kw Y connection 4kw △ connection

Industrial Three-Phase AC Electricity Motor
LF Motor Industrial Three-Phase AC Asynchronous Reluctance Electricity Motor
Operating conditions
Compatible high pressure clener models：0.75kw, 1.1kw, 1.5kw, 2kw, 3kw, 4kw

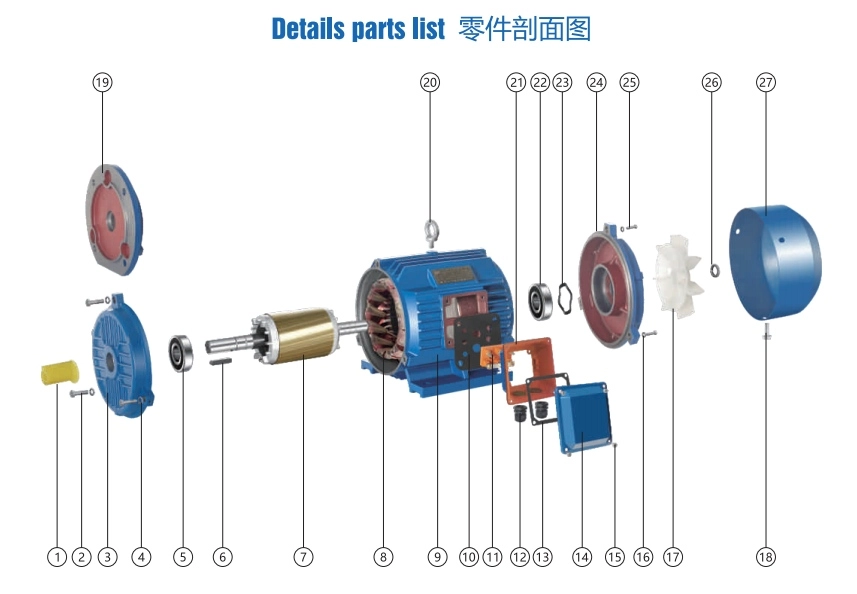

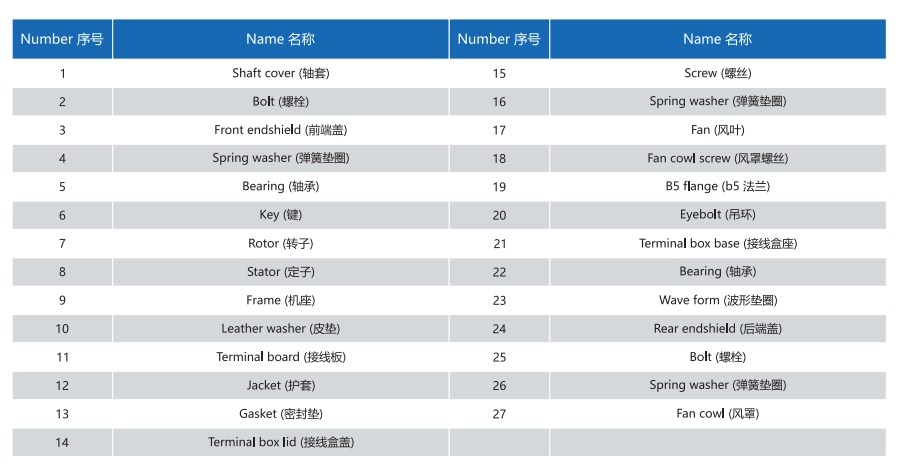

Details Parts List

Packing of Electric Motor

Packaging Details: Strong cartons with foams inside, or plywood case
Delivery Detail: 15-30 working days after payment
