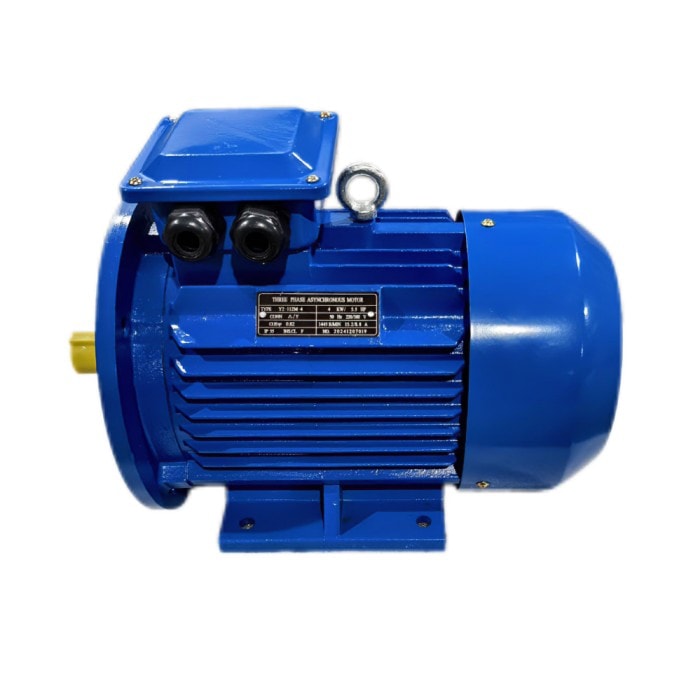

Y2 Series Electric Motor B35 mouting
Three-phase Asynchronous Motors with different 380v/660v 50Hz/60hz MOTEUR ELECTRIQUE
Electric Motor Three-phase 380v/660v B35
Y2/Y3
Electric Motor Three-phase 380v/660v B35
Power: 0.55kW-315kW
Voltage: 380V or any vlotage between 220-660V
Frequency: 50/60Hz
Protection: IP55 (🛡 + Dust Resistant)
Temp Range: ❄ -15°C to 🔥 40°C
Insulation: F/B (High-Temperature Design)
Duty: Continuous (S1)
Cooling: IC411 (Fan-Cooled Enclosure)
Altitude: ≤1000m
Connection：≤3kw Y star-connection 4kw △ delta-connection
Voltage: 380V or any vlotage between 220-660V
Frequency: 50/60Hz
Protection: IP55 (🛡 + Dust Resistant)
Temp Range: ❄ -15°C to 🔥 40°C
Insulation: F/B (High-Temperature Design)
Duty: Continuous (S1)
Cooling: IC411 (Fan-Cooled Enclosure)
Altitude: ≤1000m
Connection：≤3kw Y star-connection 4kw △ delta-connection
